NUUO NAS NVRmini Linux Embedded Standalone

• Linux Embedded
• Support megapixel camera
• Support H.264 camera
• Easy installation, free from PC crashes and virus attack
• Open platform for 14 brands of IP cameras
• Web-based live view and play back
• Recording without PC turning on
• Manage 4/8/16 Cameras
• Playback with 5 Intelligent search
• Online GUI recording schedule
• Up to 2/4 SATA 3G/s drives
• Support 2/4 bay hard disk spaces
• RAID 0, 1, 5, 10, prevention of data loss
• Brower as Microsoft Internet Explorer 6.0 or above

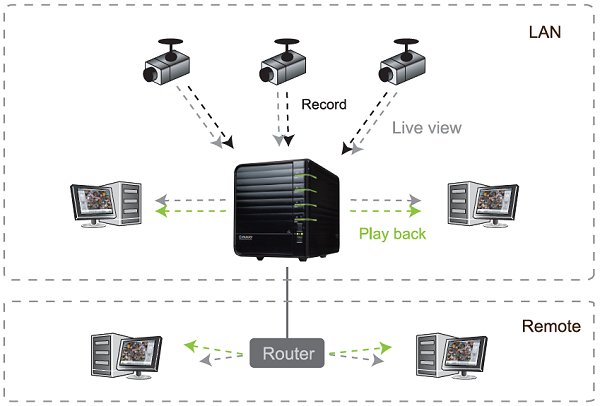

NAS directly connects to cameras. Users access NAS to receive the live streams

NAS asks for video and audio data from cameras then sends the data to users, no matter live view or playback. This kind of structure will occupy the resources of NAS CPU, however, the cameras don't need to transfer data to many users but NAS, which will decrease the usages of each camera and guarantee the stability of the recording quality.

Application

Comparison table - NUUO NAS with other brands

brand			NUUO			Other brands
item
Recording frame rate and live view frame rate			Stable with high recording quality			Unstable with lower recording quality (Easily loss frame)
The number of ports need to be set in router (for remote side)			3 ports for NAS, live view and playback			The more cameras, the more ports should be set up. (Need to open 2 ports (A/V) in router for each camera)
